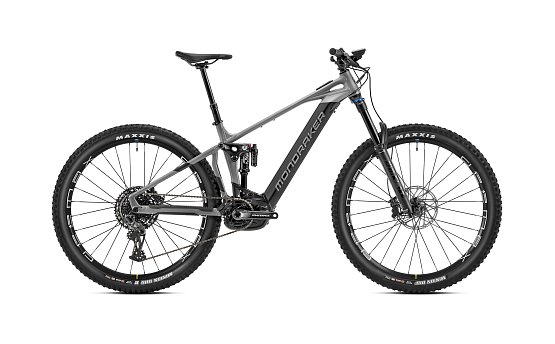

MONDRAKER Crafty R 2023, nimbus grey/black

Parametre

Výrobca MONDRAKER
Modelový rok 2023
Určenie pánske/unisex
Výrobca elektromotora BOSCH
Motor Bosch Performance Line CX G4
Výkon motora 250 W
Max. krútiaci moment 85 Nm
Batéria Bosch Powertube 750Wh
Kapacita batérie (Wh) 750
Displej Bosch Kiox 300
Kategória ENDURO
Farba nimbus grey/black
Materiál rámu hliník
Rám Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle
Typ vidlice vzduchová
Predný zdvih (mm) 160
Vidlica Fox 38 29 Float FIT GRIP EVOL Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
Tlmič Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound,air preload. Trunnion top mount, 25x10mm bottom bushings
Veľkosť kolies 29"
Predný plášť Maxxis Minion DHF 29x2.6, Tubeless ready, 3C MAXX TERRA, EXO+ Protection, 60TPI, folding bead
Zadný plášť Maxxis Minion DHR II 29x2,60" tubeless ready, 120TPI, 3C MAXX TERRA, EXO+ Protection, folding bead
Predný náboj Mavic, Boost 15x110mm, IS 6 bolts
Zadný náboj Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Ráfik Mavic E-Deemax 29, 30mm internal width, welded aluminum, PFP, tubeless ready, 28 spokes
Počet rýchlostí 12
Počet prevodníkov 1
Počet pastorkov 12
Reťaz Sram SX Eagle
Radenie Sram Trigger NX Eagle, 12s, X-Actuation 1:1, singl
Kľuky Race Face Aeffect ebike, 165mm
Prevodníky Sram X-Sync 2 Eagle 34T, steel, narrow-wide,104 BCD
Zadné ozubenie Sram PG-1210, 11-50T, 12s
Prehadzovač Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1
Brzdy Sram DB8, 4-piston, hydraulic disc brake
Brzdové páky Sram DB8, tool-free reach adjust
Predný kotúč Sram Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Zadný kotúč Sram Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Predstavec Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8 mm barbore
Riadidlá Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Rukoväte Onoff Desert, 1lock-on, 135mm, sizes: S/M L/XL
Hlavové zloženie Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Sedlovka Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Sedlo Fizik Terra Aidon X5 145mm
