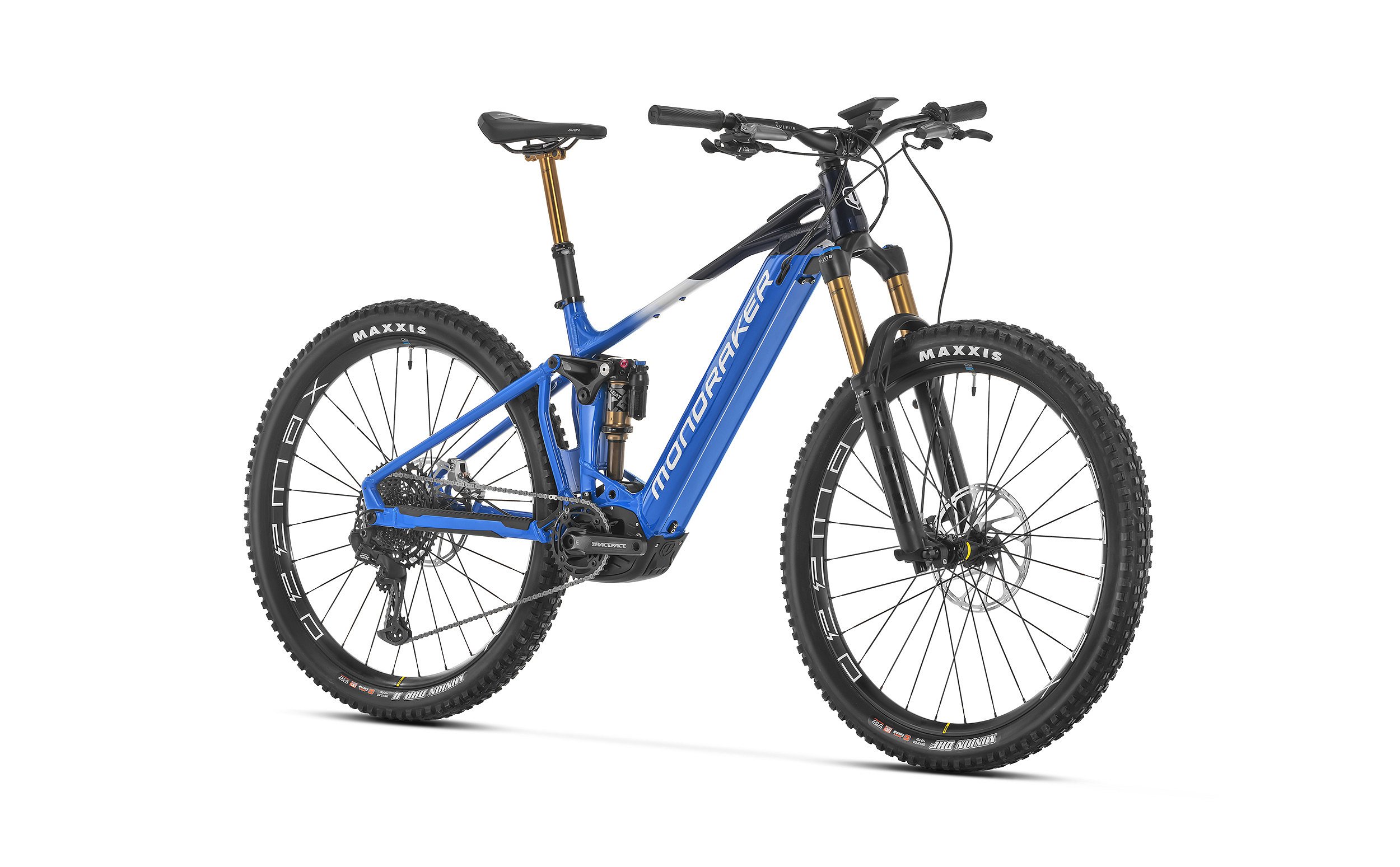

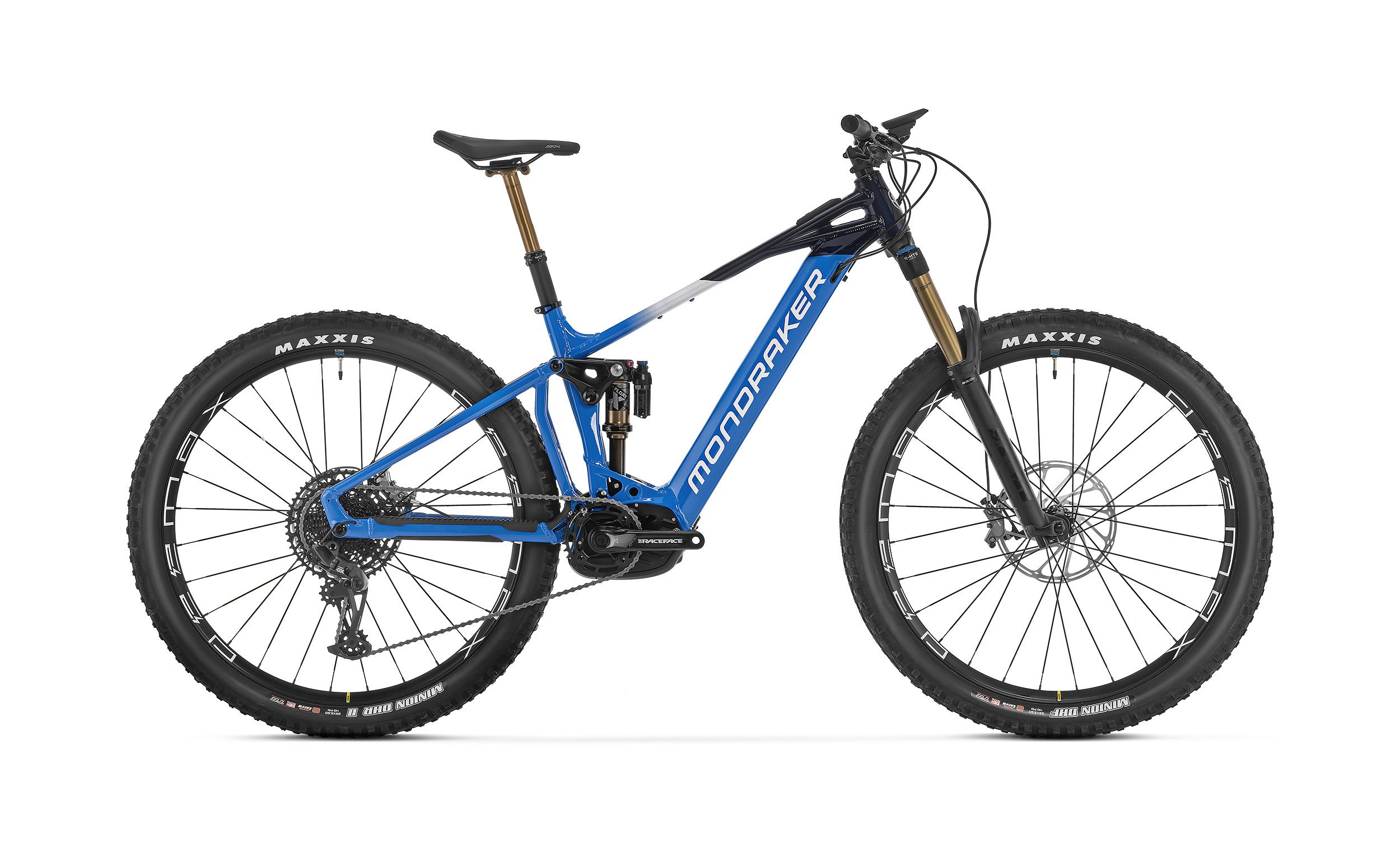

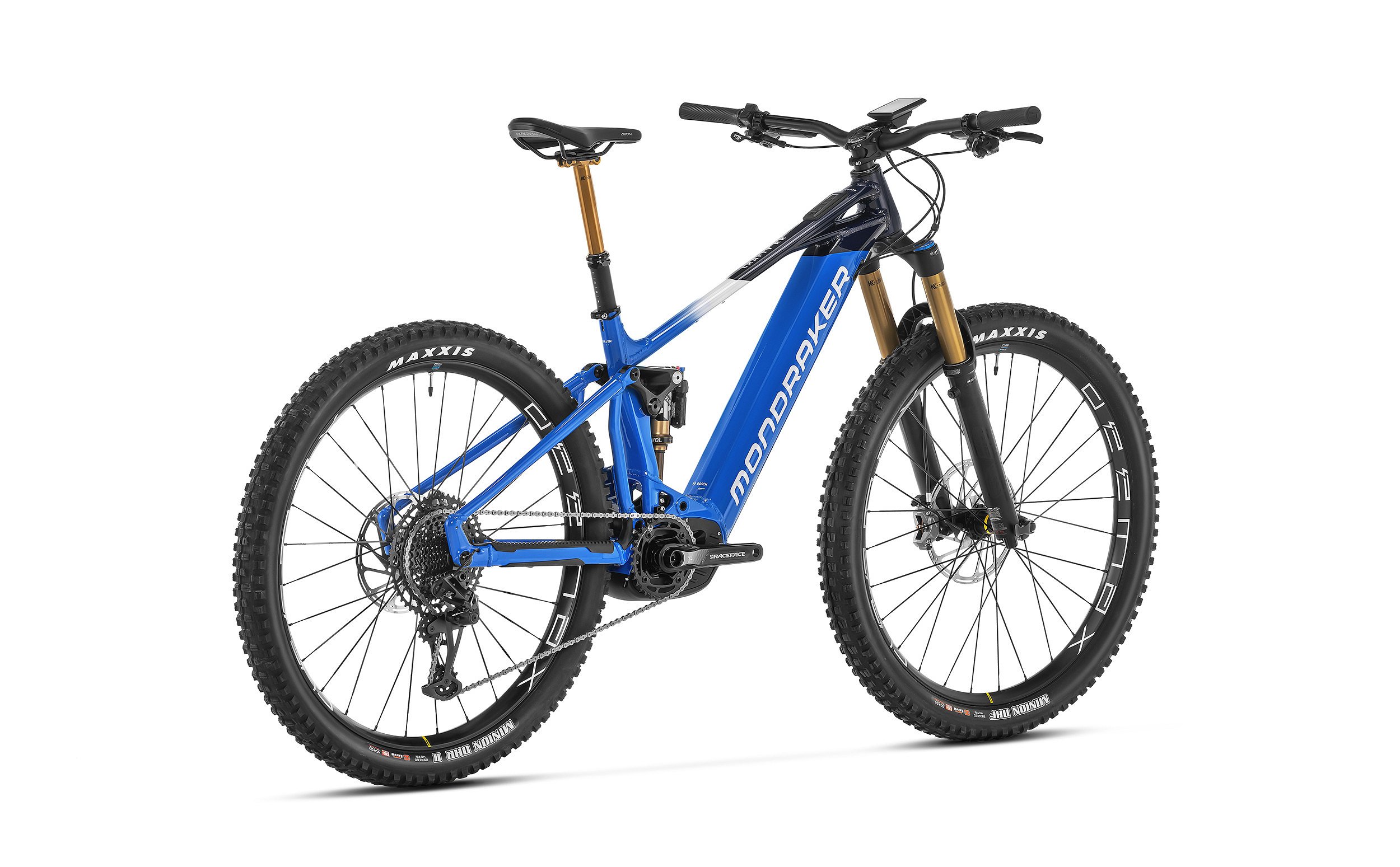

MONDRAKER Crafty RR 29" 2024, carrera blue/navy blue

Parametre

Výrobca MONDRAKER
Modelový rok 2023
Určenie pánske/unisex
Výrobca elektromotora BOSCH
Motor Bosch Performance Line CX (25km/h) Smart System
Batéria Bosch Power Tube 750Wh
Kapacita batérie (Wh) 750
Displej Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Kategória ENDURO
Farba modrá
Materiál rámu hliník
Rám Crafty 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery with integrated alloy cover, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Typ vidlice vzduchová
Predný zdvih (mm) 160
Vidlica Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high and low-speed compression, high and low-speed rebound, air preload
Tlmič Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Veľkosť kolies 29"
Predný plášť Maxxis Minion DHF 29x2,60" tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Zadný plášť Maxxis Minion DHR II 29x2,60", tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Predný náboj Mavic, Boost 15x110mm, IS 6 bolts
Zadný náboj Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts
Ráfik Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Počet rýchlostí 12
Počet prevodníkov 1
Počet pastorkov 12
Reťaz Sram NX Eagle, 12s, Powerlock
Radenie Sram Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Kľuky Race Face Aeffect ebike, 165mm
Prevodníky Sram X-Sync 2 Eagle 34T, steel, narrow-wide,104 BCD
Zadné ozubenie Sram XG-1230, 11-50T, 12s
Prehadzovač Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-actuation 1:1
Brzdy Sram Code Bronze, oversized 4-piston caliper
Brzdové páky Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Predný kotúč Sram Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Zadný kotúč Sram Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Predstavec Onoff Sulfur FG 30mm 0°, 6061 forged alloy, 31.8 mm barbore
Riadidlá Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm barbore
Rukoväte Onoff Desert, 1lock-on, 135mm
Hlavové zloženie Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Sedlovka Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Sedlo Fizik Terra Aidon X5 145mm
